About Warrior Gamers

Overview

There are many anti-social gamers at UH Manoa. UH Manoa gamers generally just play with themselves or with their close group of friends prior to college. It is hard to find someone else with the same game interest and time frames of which they can play with each other. Therefore, Game Buddies is an application which tries to help anti-social gamers increase communication and social interaction between each other.

User Guide

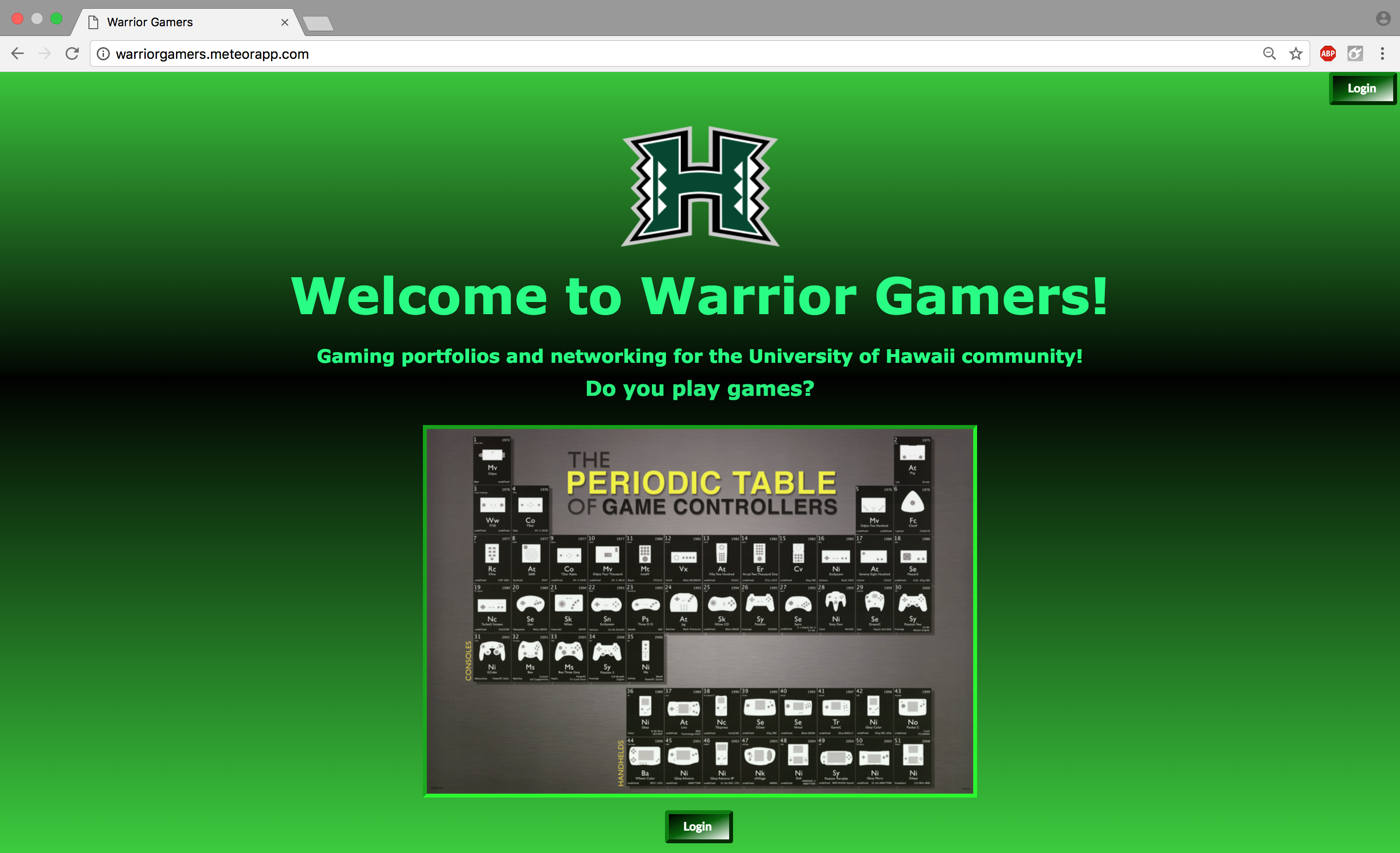

This is the Landing Page for the Warrior Gamers app. It contains a brief slideshow of what the application contains.

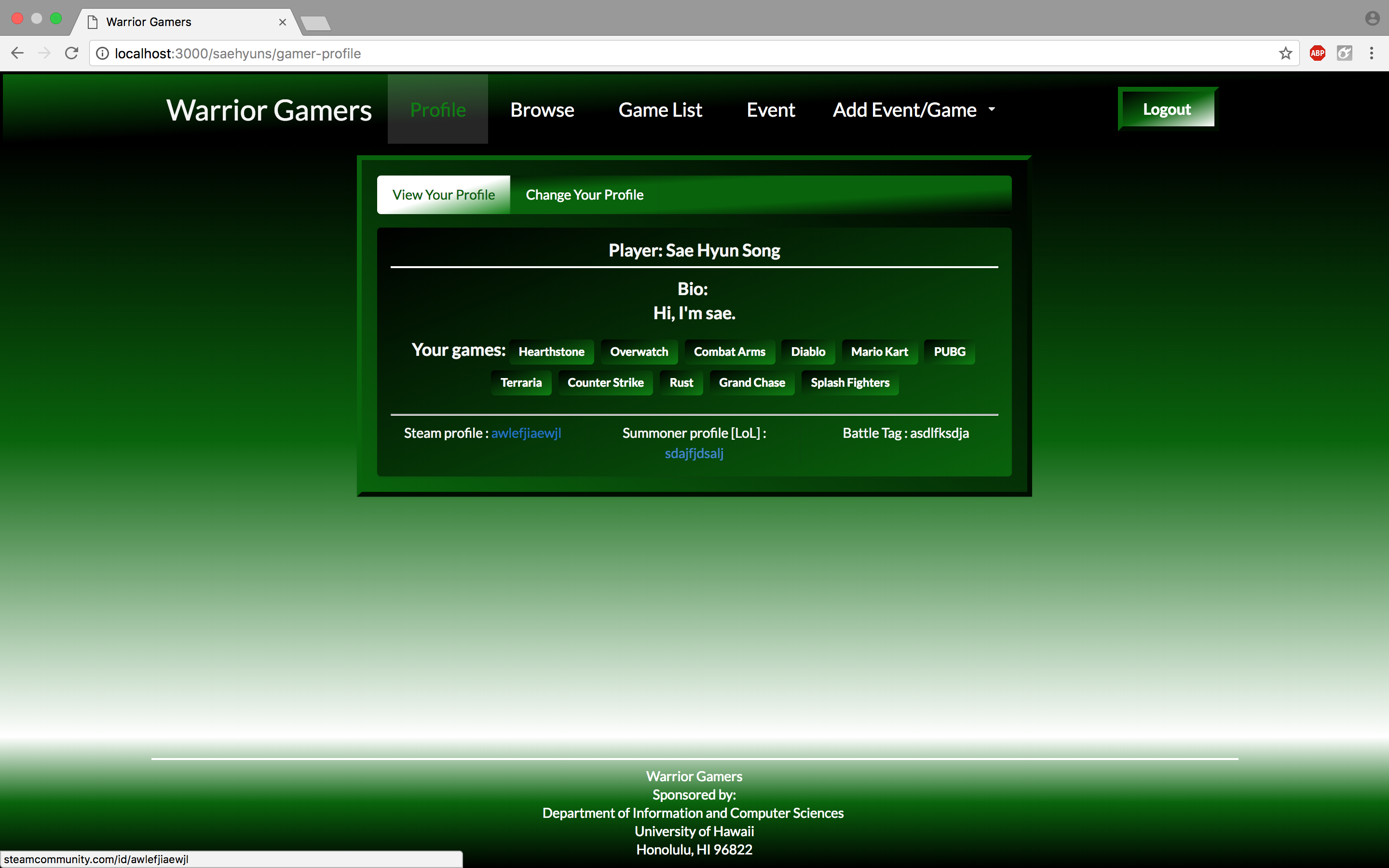

This is the View Profile Page for the Warrior Gamers app. It contains your profile that you have created. Your name at the top, biography, the games that you play, and your profiles for steam, blizzard, and summoner profiles taking you to the respective links that are related. For example, clicking on your summer profile name will take you to your op.gg profile page.

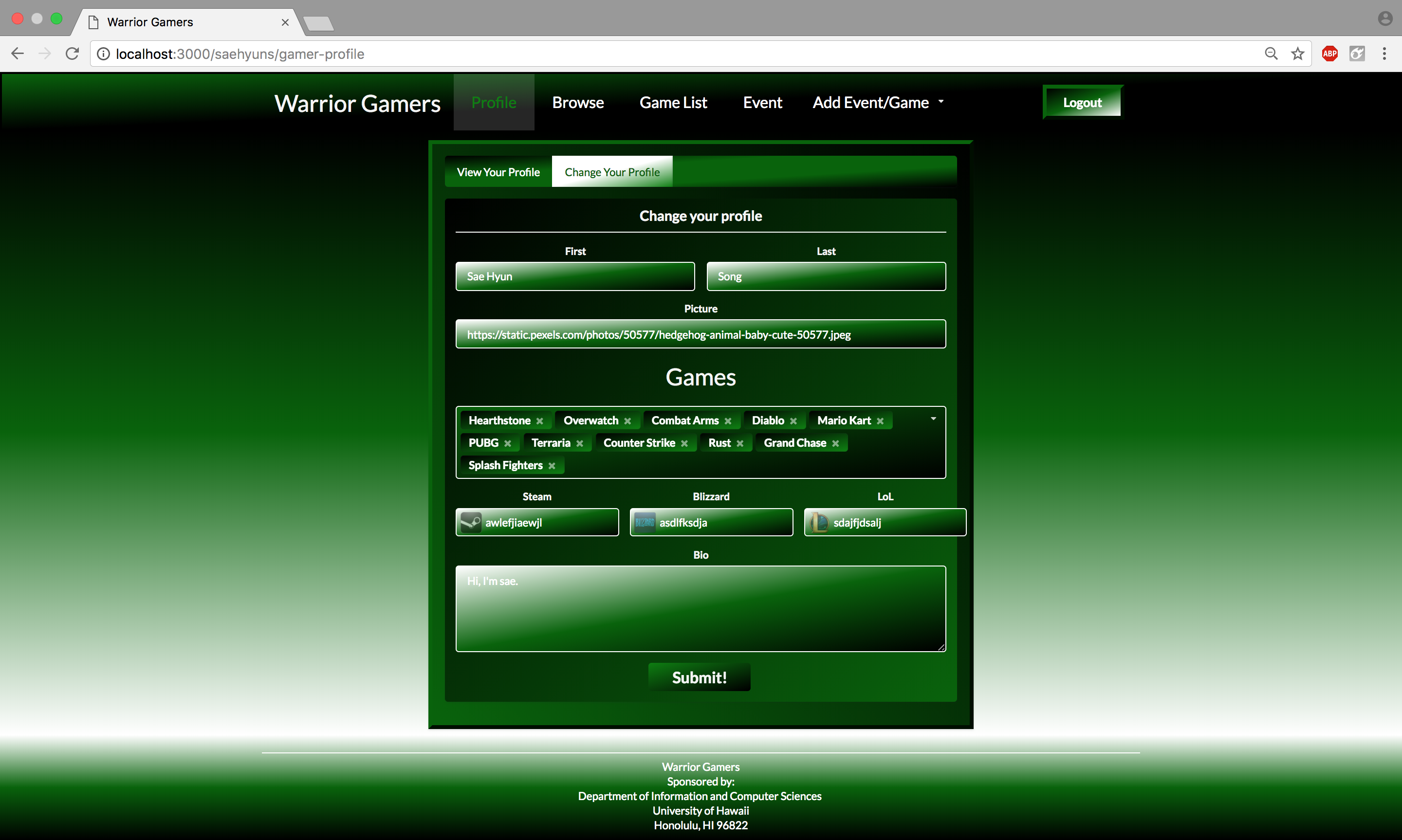

This is the Change Profile Page of the Warrior Gamers App. It contains the form in which you need to fill our in order to create your profile. Your profile information will be available to other people using the application. So if they are interested in playing with you, they can contact you.

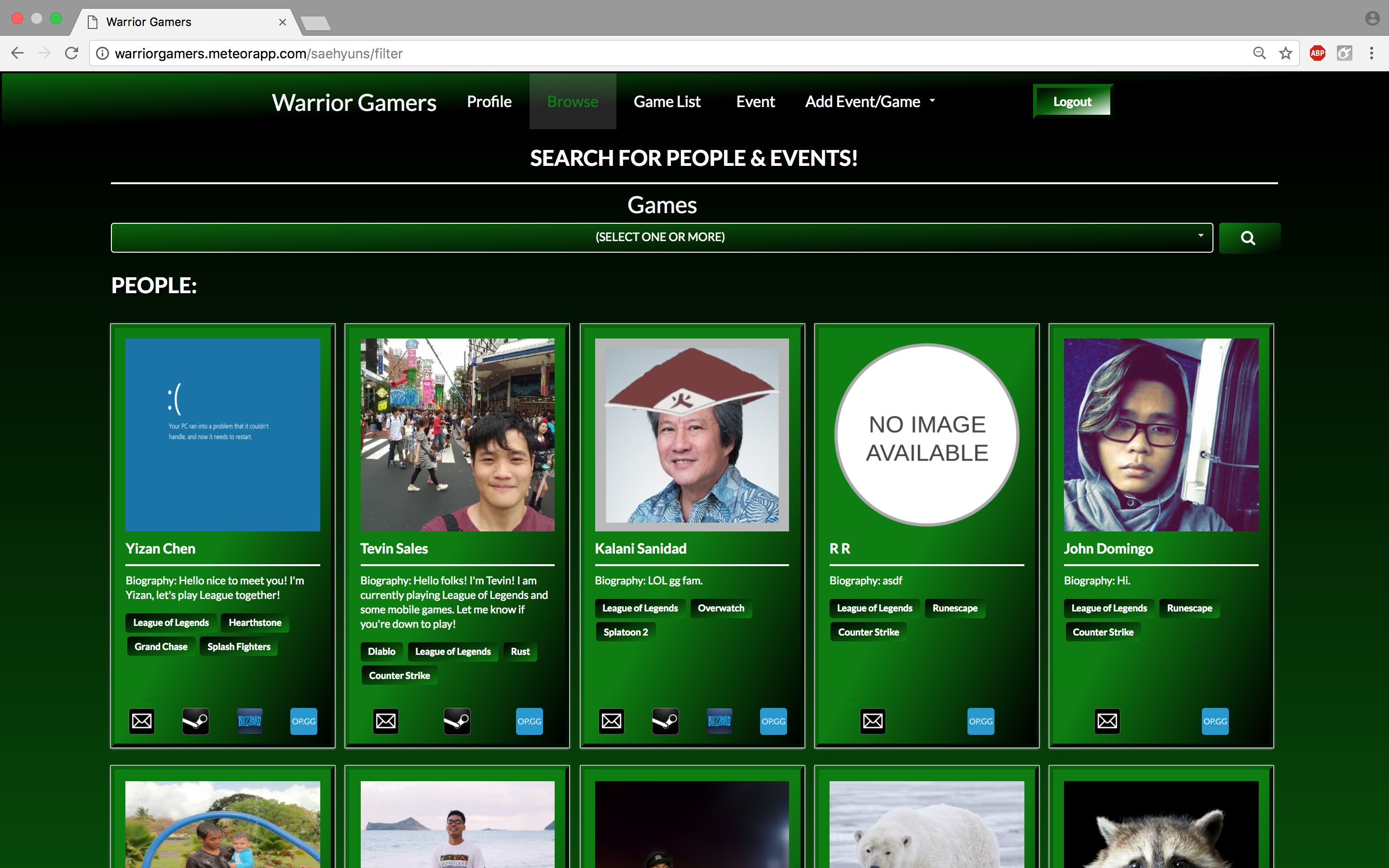

This is the Browse Page of the Warrior Gamers App. It initially contains all the people in the database. You can choose to narrow down your search based off games. It will show all profiles with the related games. It also contains events in which you can search for based off of the game you are interested in.

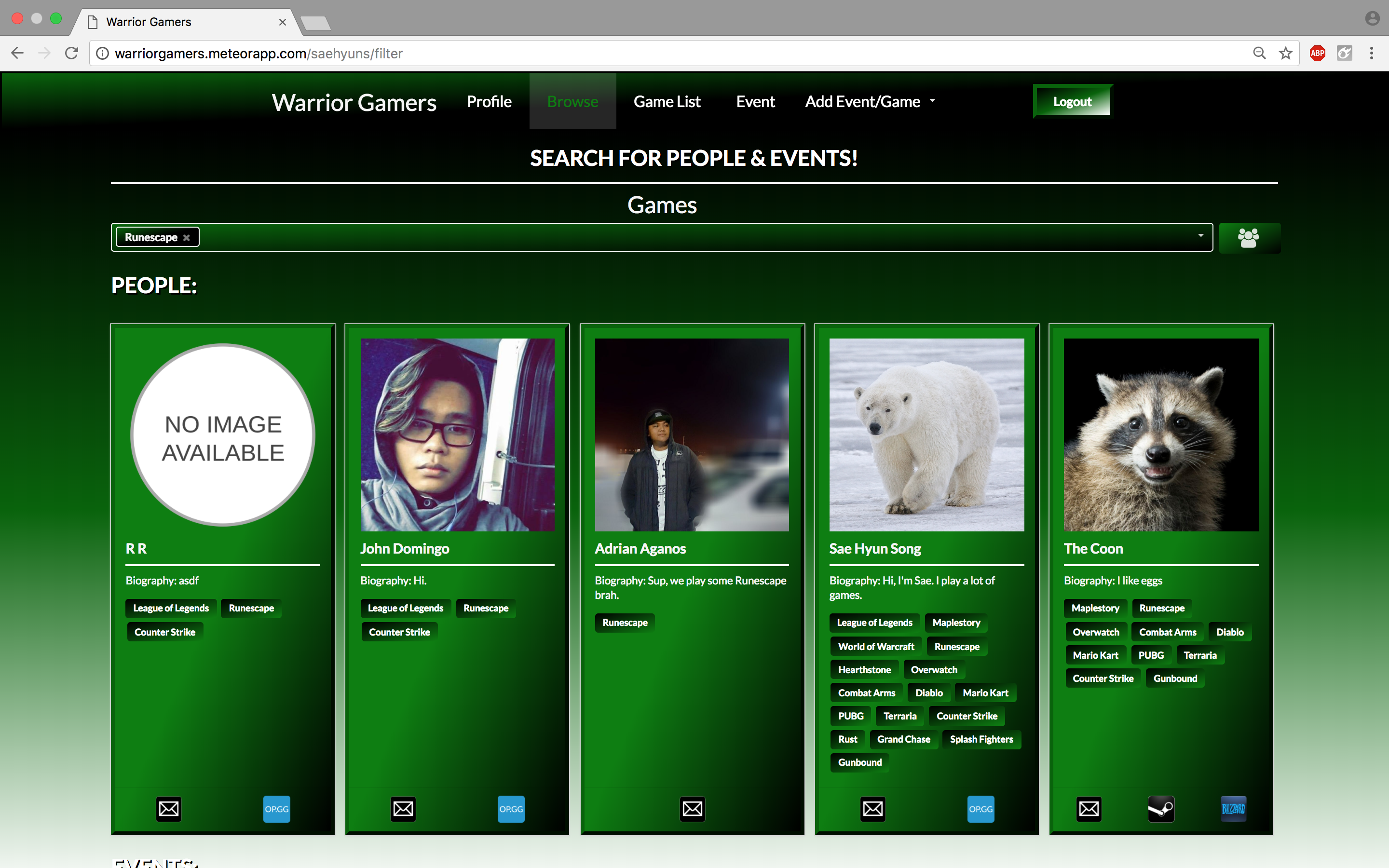

For example, if you search for Runescape, it will reduce the profiles to only show people with the Runescape tag attached to their profile.

This is the Game List Page of the Warrior Gamers App. It contains the various games that are currently in the database. It contains the game picture, the title of the game, the game description, and tags related to the game. In case you’re curious on what the tags do, you can click on them and it will take you to a google search of that definition. You may also search for certain games with certain tags related to it.

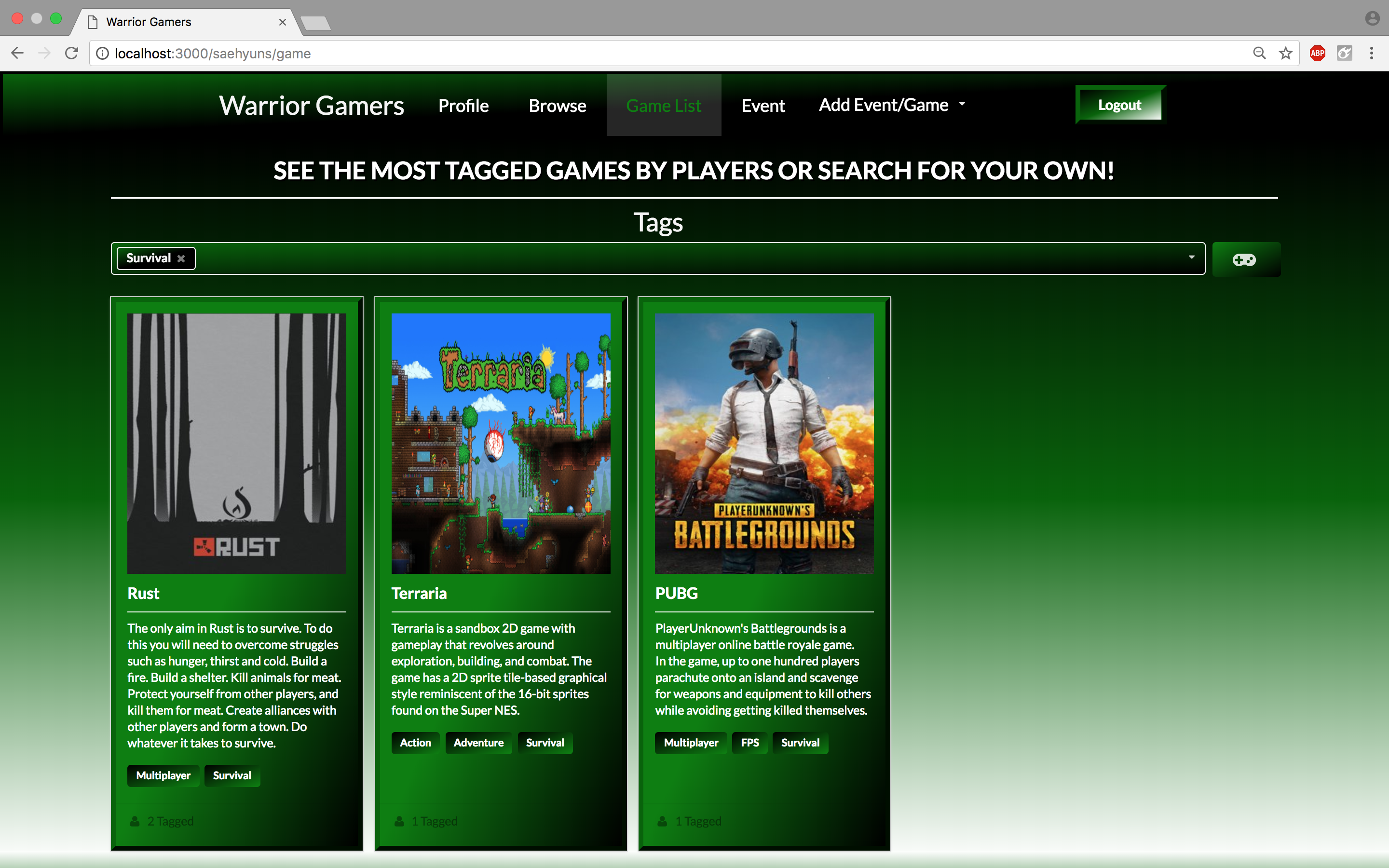

This is an example of what happens when you search “Survival” on the page. It will show all games with the Survival tag in it.

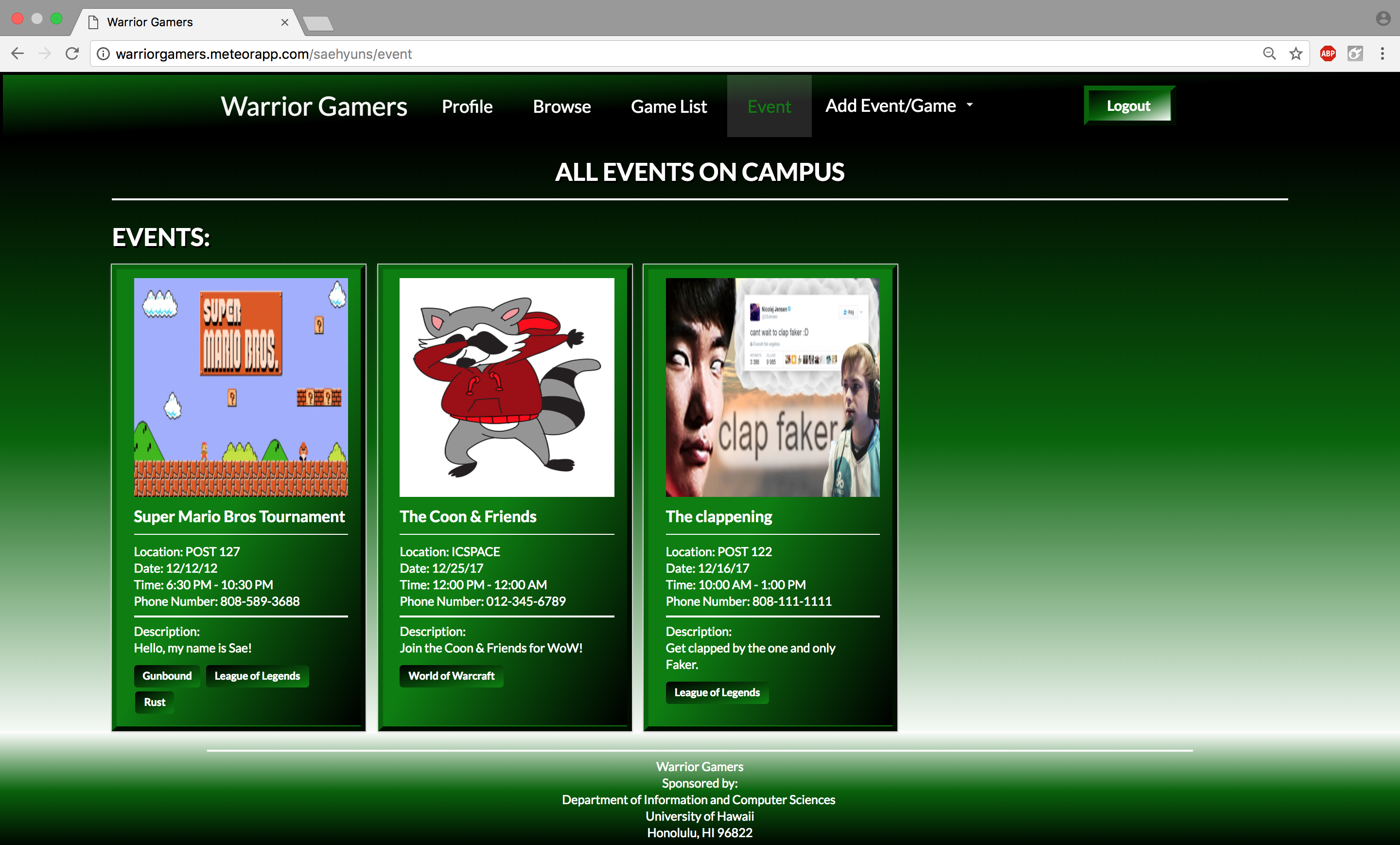

This is the Event List Page of the Warrior Gamers App. It contains all the events that are currently happening on campus. It contains the picture, title, information, and description of the event along with game tags related to the event.

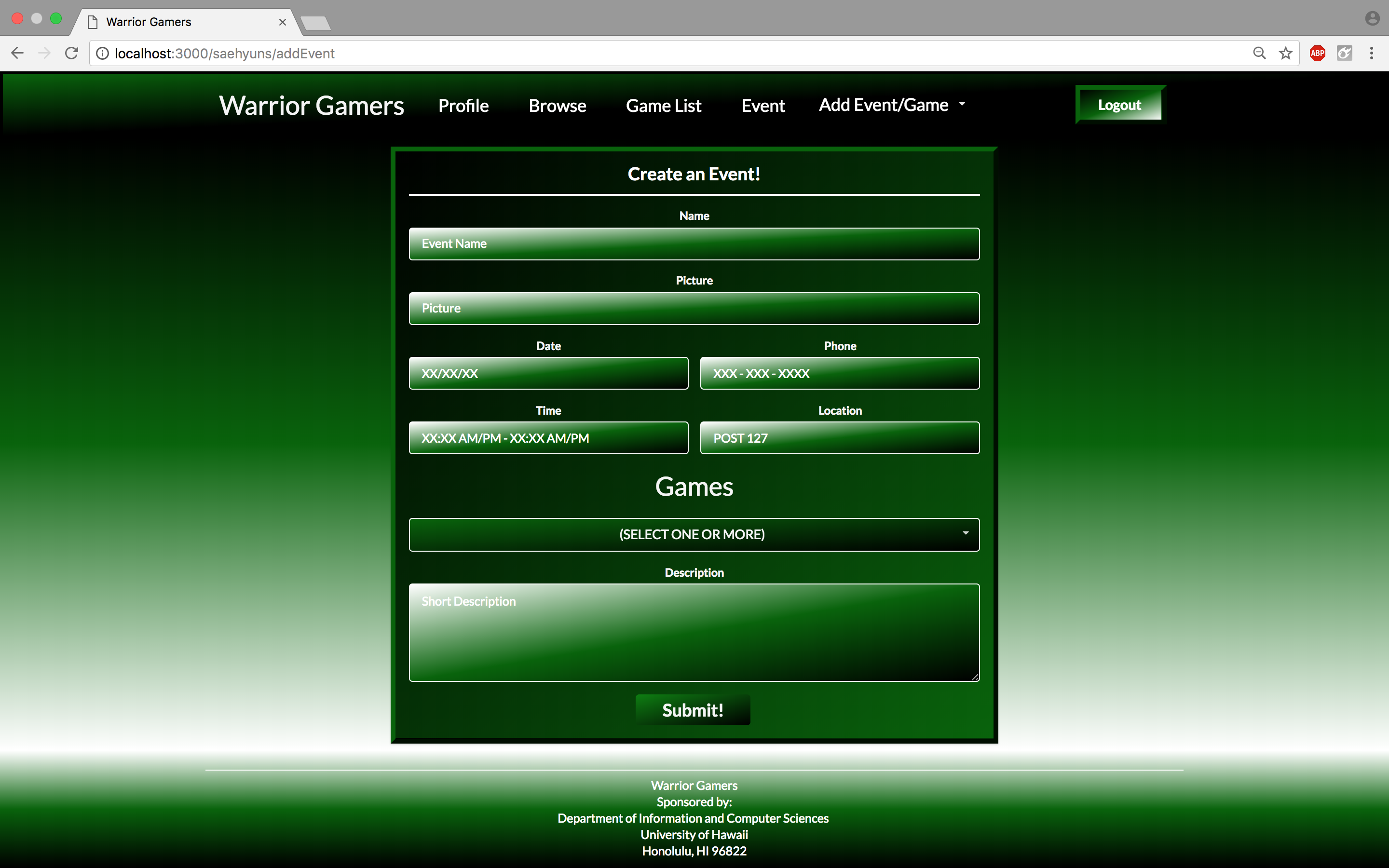

This is the Add Event Page of the Warrior Gamers App. It will contain a form for users to be able to add an event for other players to see and possibly attend. It will require a name, picture, date, phone, time, location, games, and descriptions associated with that event. You will have to put specific input by following the placeholder in the field. Otherwise, it will not allow you to add it. It will be monitored and removed if inappropriate.

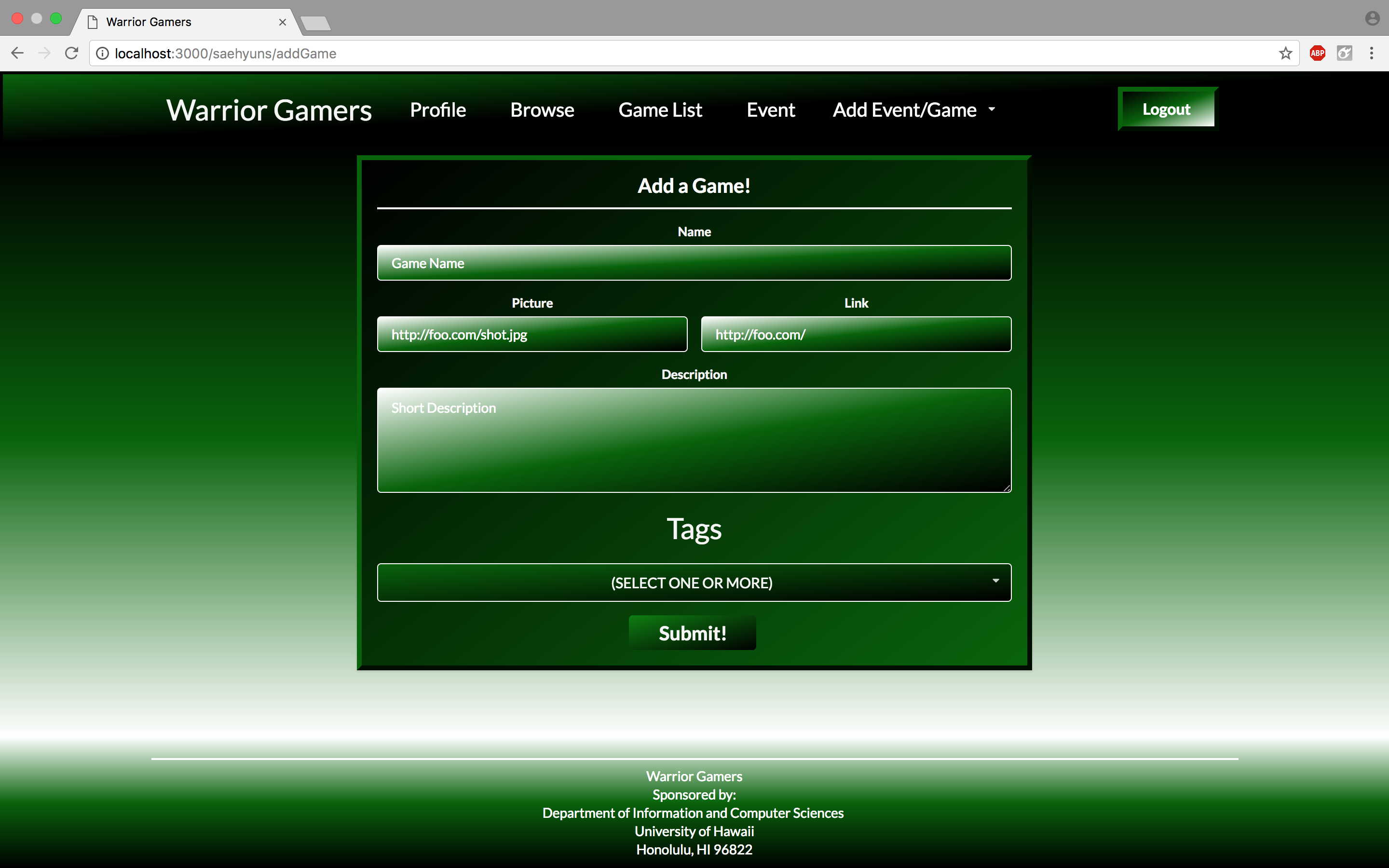

This is the Add Game Page of the Warrior Gamers App. It will contain a form for users to be able to add a game for other players to see. It will require a name, picture, link to the website, description, and tags related to the game. It will be monitored and removed if inappropriate.

Community Feedback

- Response to the Forms

The Warrior gamers have taken a liking to how we created the website. If you would like to send in a form and tell us how you experienced out website. The link is provided below.

Link to the Google Form

- A summary of the feedback:

We surveyed over 6 UH gamers for their experience on the site. The average overall rating of the site is 4/5, and over half would recommend to other. Some liked key aspects are the links to player’s stats, the number of available game/event, the ease to add game/event and the idea of a UH gamers site. But they would like improvement in the data filling page and the UI of the site in the future. Some also recommended adjusting the current color scheme and the text style.

Developer Guide

Installation

First, install Meteor.

Second, download a copy of Warrior Gamers, or clone it using git.

Third, cd into the app/ directory and install libraries with:

$ meteor npm install

Fourth, run the system with:

$ meteor npm run start

If all goes well, the application will appear at http://localhost:3000. If you have an account on the UH test CAS server, you can login and test the application.

Directory structure

The top-level directory structure contains:

app/        # holds the Meteor application sources
config/     # holds configuration files, such as settings.development.json
.gitignore  # don't commit IntelliJ project files, node_modules, and settings.production.json

This structure separates configuration files (such as the settings files) in the config/ directory from the actual Meteor application in the app/ directory.

The app/ directory has this top-level structure:

client/
  lib/           # holds Semantic UI files.
  head.html      # the <head>
  main.js        # import all the client-side html and js files.

imports/
  api/           # Define collection processing code (client + server side)
    base/
    interest/
    profile/
  startup/       # Define code to run when system starts up (client-only, server-only)
    client/
    server/
  ui/
    components/  # templates that appear inside a page template.
    layouts/     # Layouts contain common elements to all pages (i.e. menubar and footer)
    pages/       # Pages are navigated to by FlowRouter routes.
    stylesheets/ # CSS customizations, if any.

node_modules/    # managed by Meteor

private/
  database/      # holds the JSON file used to initialize the database on startup.

public/
  images/        # holds static images for landing page and predefined sample users.

server/
   main.js       # import all the server-side js files.

Import conventions

This system adheres to the Meteor 1.4 guideline of putting all application code in the imports/ directory, and using client/main.js and server/main.js to import the code appropriate for the client and server in an appropriate order.

This system accomplishes client and server-side importing in a different manner than most Meteor sample applications. In this system, every imports/ subdirectory containing any Javascript or HTML files has a top-level index.js file that is responsible for importing all files in its associated directory.

Then, client/main.js and server/main.js are responsible for importing all the directories containing code they need. For example, here is the contents of client/main.js:

import '/imports/startup/client';
import '/imports/ui/components/form-controls';
import '/imports/ui/components/directory';
import '/imports/ui/components/user';
import '/imports/ui/components/landing';
import '/imports/ui/layouts/directory';
import '/imports/ui/layouts/landing';
import '/imports/ui/layouts/shared';
import '/imports/ui/layouts/user';
import '/imports/ui/pages/directory';
import '/imports/ui/pages/filter';
import '/imports/ui/pages/home';
import '/imports/ui/pages/game';
import '/imports/ui/pages/add';
import '/imports/ui/pages/event';
import '/imports/ui/pages/landing';
import '/imports/ui/pages/user';
import '/imports/ui/stylesheets/style.css';
import '/imports/api/base';
import '/imports/api/profile';
import '/imports/api/interest';

Apart from the last line that imports style.css directly, the other lines all invoke the index.js file in the specified directory.

We use this approach to make it more simple to understand what code is loaded and in what order, and to simplify debugging when some code or templates do not appear to be loaded. In our approach, there are only two places to look for top-level imports: the main.js files in client/ and server/, and the index.js files in import subdirectories.

Note that this two-level import structure ensures that all code and templates are loaded, but does not ensure that the symbols needed in a given file are accessible. So, for example, a symbol bound to a collection still needs to be imported into any file that references it.

Naming conventions

This system adopts the following naming conventions:

Data model

The Warrior Gamers data model is implemented by two Javascript classes: GamerProfileCollection.js and GameCollection. Both of these classes encapsulate a MongoDB collection with the same name and export a single variable (GamerProfiles and GameCollection) that provides access to that collection.

Any part of the system that manipulates the BowFolios data model imports the Profiles or Interests variable, and invokes methods of that class to get or set data.

There are many common operations on MongoDB collections. To simplify the implementation, the GamerProfileCollection and GameCollection classes inherit from the BaseCollection class.

The BaseUtilities file contains functions that operate across both classes.

CSS

The application uses the Semantic UI CSS framework. To learn more about the Semantic UI theme integration with Meteor, see Semantic-UI-Meteor.

The Semantic UI theme files are located in app/client/lib/semantic-ui directory. Because they are located in the client/ directory and not the imports/ directory, they do not need to be explicitly imported to be loaded. (Meteor automatically loads all files into the client that are located in the client/ directory).

Note that the user pages contain a menu fixed to the top of the page, and thus the body element needs to have padding attached to it. However, the landing page does not have a menu, and thus no padding should be attached to the body element on that page. To accomplish this, the router uses “triggers” to add an remove the appropriate classes from the body element when a page is visited and then left by the user.

Routing

For display and navigation among its six pages, the application uses Flow Router.

Routing is defined in imports/startup/client/router.js.

BowFolios defines the following routes:

Authentication

For authentication, the application uses the University of Hawaii CAS test server, and follows the approach shown in meteor-example-uh-cas.

When the application is run, the CAS configuration information must be present in a configuration file such as config/settings.development.json.

Anyone with a UH account can login and use WarriorGamers to create a gamer profile. A gamer profile is created for them if none already exists for that username.

Authorization

Only the landing page is available to the public.

In order to access the pages besides the landing page: you must be logged in (i.e. authenticated) through the UH test CAS server, and the authenticated username returned by CAS must match the username specified in the URL. So, for example, only the authenticated user johnson can access the pages http://localhost:3000/johnson/profile and http://localhost:3000/johnson/filter.

To prevent people from accessing pages they are not authorized to visit, template-based authorization is used following the recommendations in Implementing Auth Logic and Permissions.

The application implements template-based authorization using an If_Authorized template, defined in If_Authorized.html and If_Authorized.js.

Configuration

The config directory is intended to hold settings files. The repository contains two files: config/settings.development.json and settings.production.json. The settings.production.json file will not be available as a link due to privacy / credential issues.

The .gitignore file prevents a file named settings.production.json from being committed to the repository. So, if you are deploying the application, you can put settings in a file named settings.production.json and it will not be committed.

Warrior Gamers checks on startup to see if it has an empty database in initialize-database.js, and if so, loads the file specified in the configuration file, such as settings.development.json. For development purposes, a sample initialization for this database is in initial-collection-data.json.

Also it uses the settings.development.json file to link the json file to the database on mLab linking that database to the deployment on Meteor Galaxy.

Quality Assurance

ESLint

Warrior GAmers includes a .eslintrc file to define the coding style adhered to in this application. You can invoke ESLint from the command line as follows:

meteor npm run lint

ESLint should run without generating any errors.

It’s significantly easier to do development with ESLint integrated directly into your IDE (such as IntelliJ).

Data model unit tests

To run the unit tests on the data model, invoke the script named ‘test’, which is defined in the package.json file:

meteor npm run test

This outputs the results to the console. Here is an example of a successful run, with timestamps removed:

meteor npm run test

> bowfolios@ test /Users/SaeHyunSong/Documents/GitHub/warrior-gamers/app
> cross-env TEST_WATCH=1 meteor test --driver-package meteortesting:mocha

[[[[[ Tests ]]]]]

=> Started proxy.
=> Started MongoDB.
I20171121-22:47:46.718(-10)?
I20171121-22:47:46.788(-10)? --------------------------------
I20171121-22:47:46.789(-10)? ----- RUNNING SERVER TESTS -----
I20171121-22:47:46.790(-10)? --------------------------------
I20171121-22:47:46.790(-10)?
I20171121-22:47:46.792(-10)?
I20171121-22:47:46.793(-10)?
I20171121-22:47:46.794(-10)?   InterestCollection
=> Started your app.

=> App running at: http://localhost:3000/
    ✓ #define, #isDefined, #removeIt, #dumpOne, #restoreOne (139ms)
    ✓ #findID, #findIDs-10)?
I20171121-22:47:46.801(-10)?
I20171121-22:47:46.802(-10)?   ProfileCollection
    ✓ #define, #isDefined, #removeIt, #dumpOne, #restoreOne (152ms)
    ✓ #define (illegal interest)
    ✓ #define (duplicate interests)
I20171121-22:47:46.805(-10)?
I20171121-22:47:46.806(-10)?
I20171121-22:47:46.807(-10)?   5 passing (386ms)
I20171121-22:47:46.810(-10)?
I20171121-22:47:46.812(-10)? Load the app in a browser to run client tests, or set the TEST_BROWSER_DRIVER environment variable. See https://github.com/meteortesting/meteor-mocha/blob/master/README.md#run-app-tests

Development History

Milestone 1

This milestone started on November 7, 2017 and was finished on November 22, 2017. The goals of Milestone 1 was to deploy our system to Galaxy, create a landing page, and create four other mockup pages. You can find more in detail here.

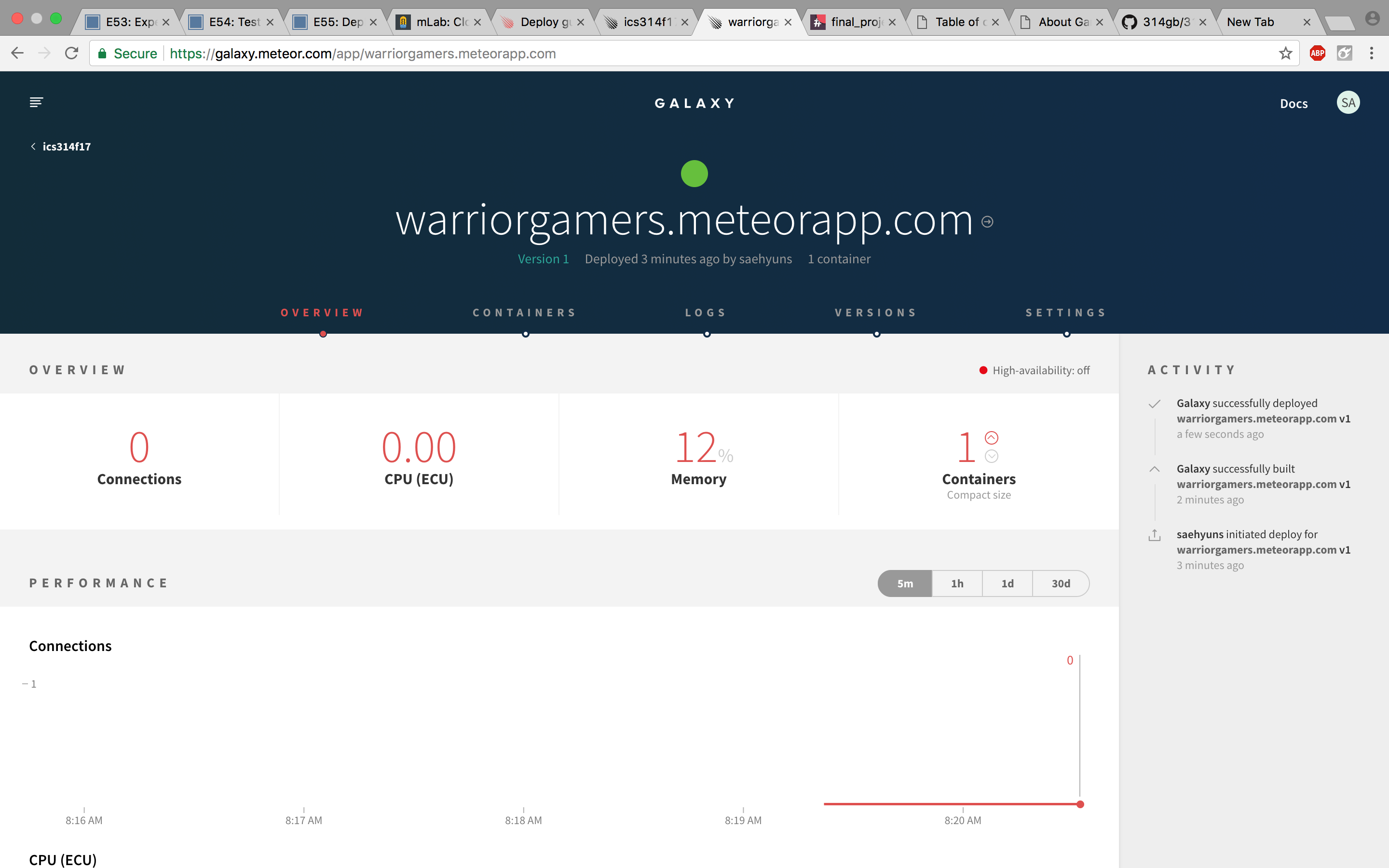

Deployment

The deployed website can be found at http://warriorgamers.meteorapp.com/

Landing Page

Mockup Pages

Mockups for the following six pages were implemented during M1 (Links are provided above):

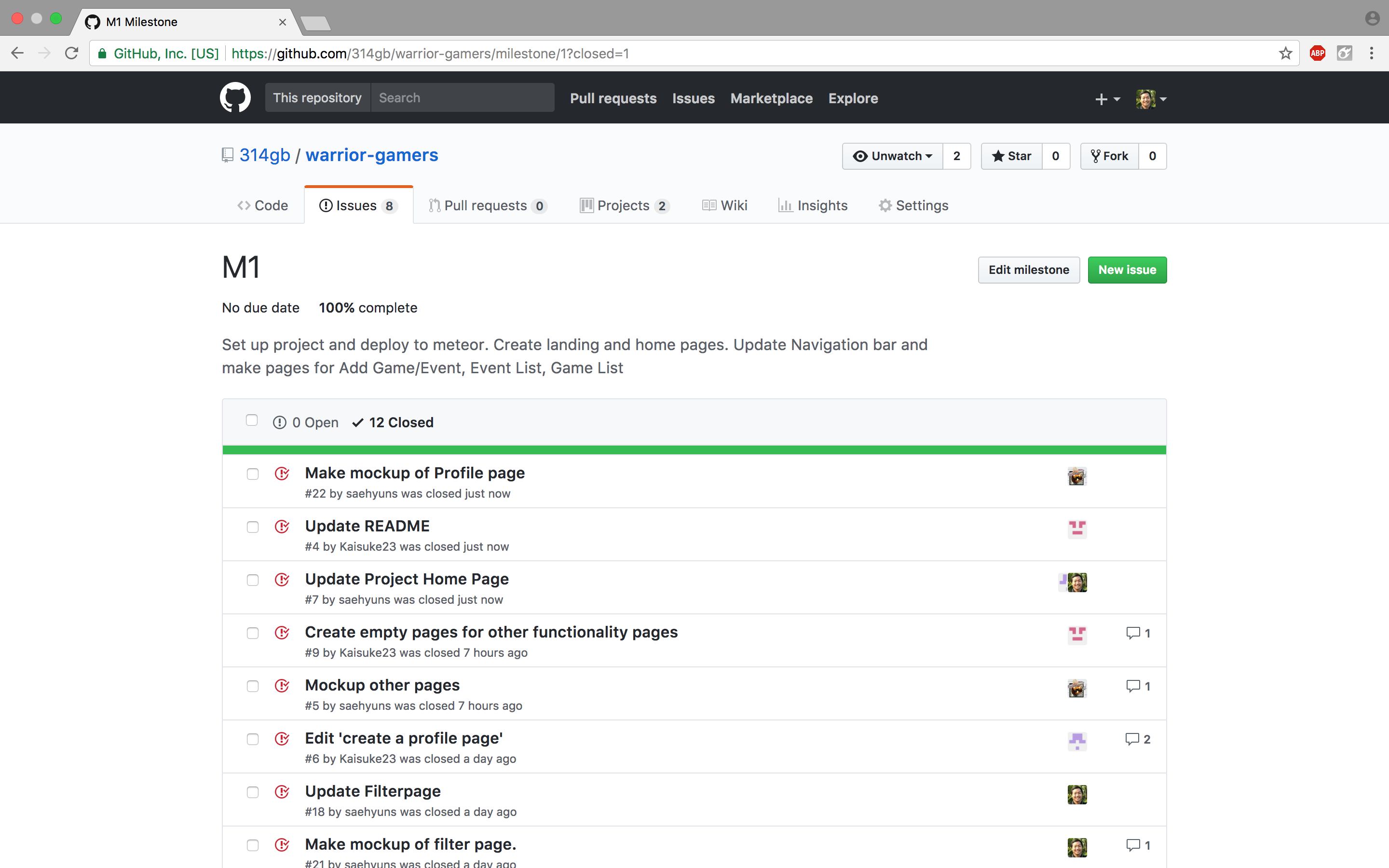

Milestone 1 was implemented as Warrior Gamers GitHub Milestone M1:

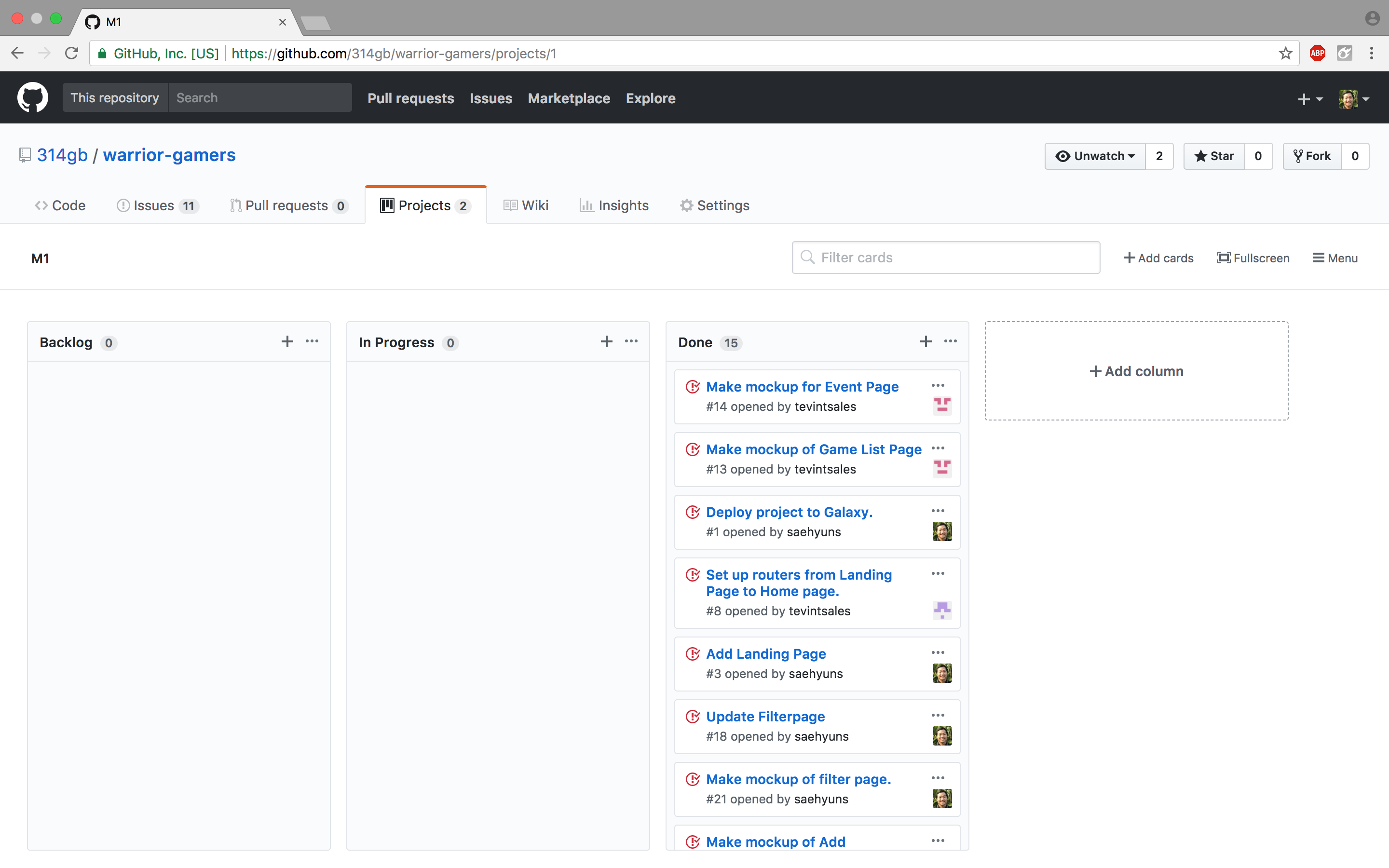

Milestone 1 consisted of twelve issues, and progress was managed via the Warrior GitHub Project M1:

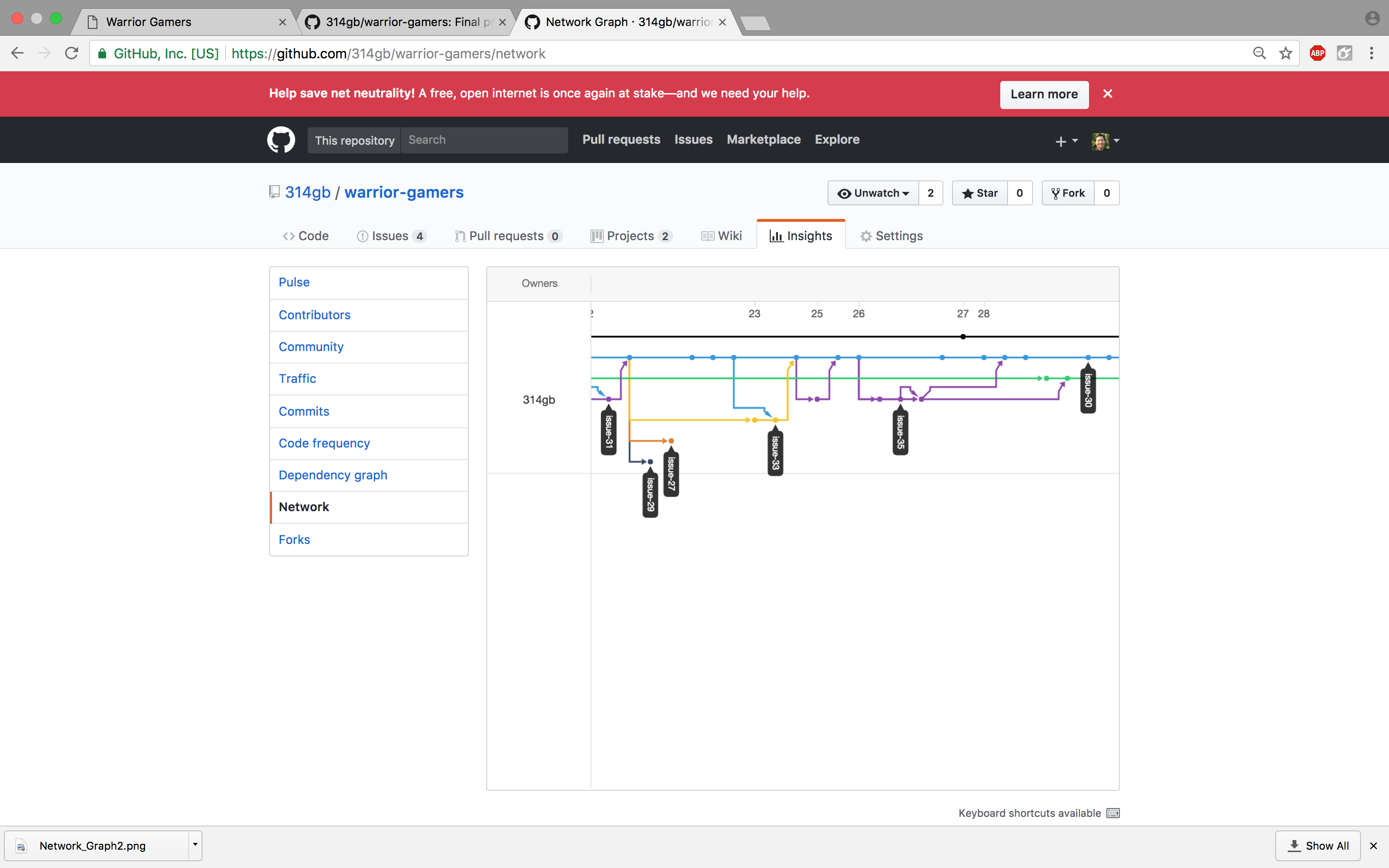

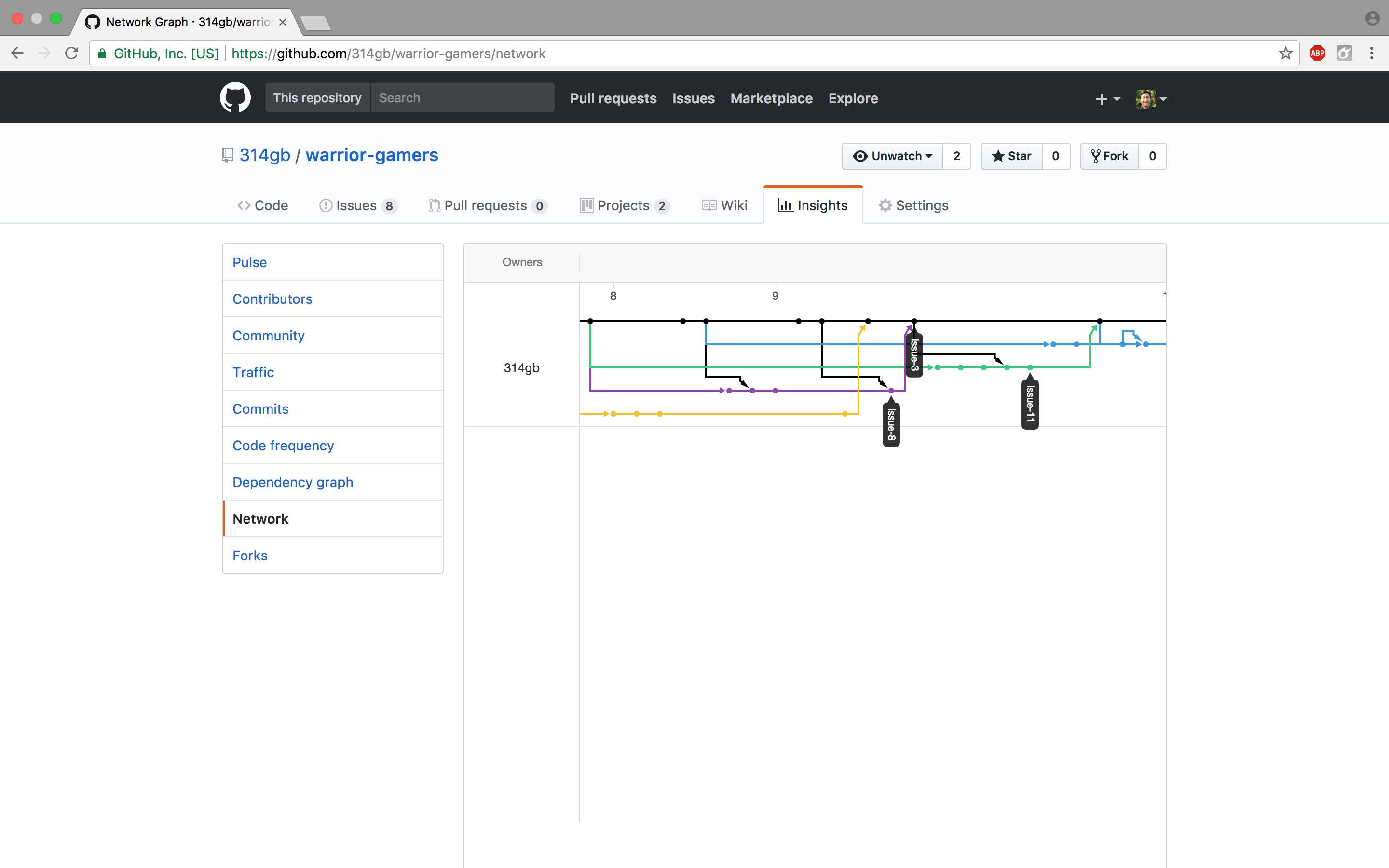

Each issue was implemented in its own branch, and merged into master when completed:

Milestone 2

This milestone started on November 22, 2017 and was finished on December 13, 2017. Issues expected to be addressed during the second Milestone for this project can be found here.The main goal of Milestone 2 was to significantly improve the functionality and quality of our application and significantly improve our software engineering process beyond M1.

More specifically, it was to implement the data model using MongoDB. We implemented the data model as a set of Javascript classes. The BaseCollection class provides common fields and operations. The GameCollection, GamerProfileCollection, EventCollection, and the Tags collection classes inherit from BaseCollection and provide the persistent data structures useful for Warrior Gamers.

Using that underlying data model and connecting it to the user interface. This meant that we updated the templates for each page with calls to helper functions and created Javascript files for the templates. We had used the form control templates from meteor-example-form to help simplify implementation of form processing.

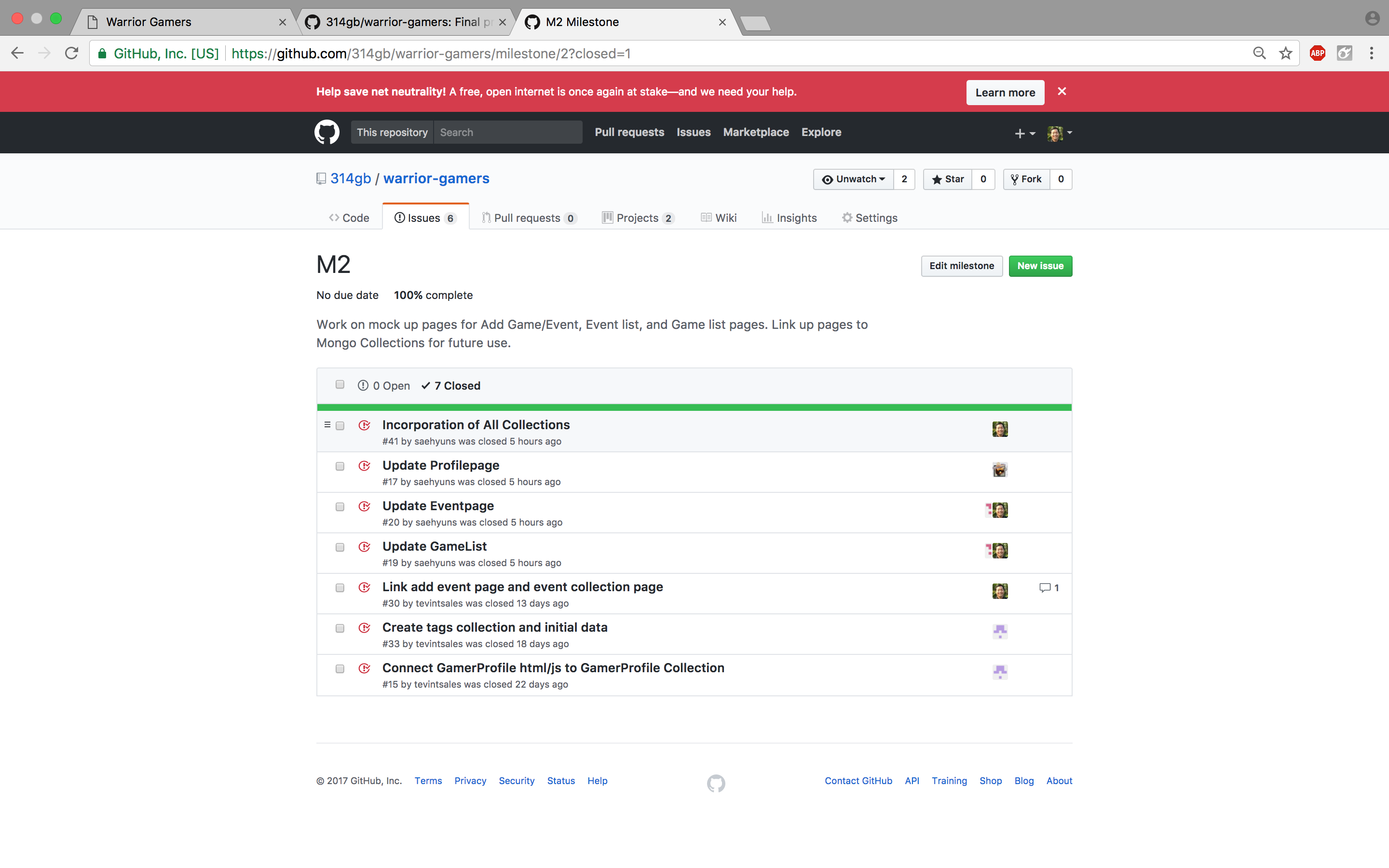

Milestone 2 was implemented as Warrior Gamers GitHub Milestone M2:

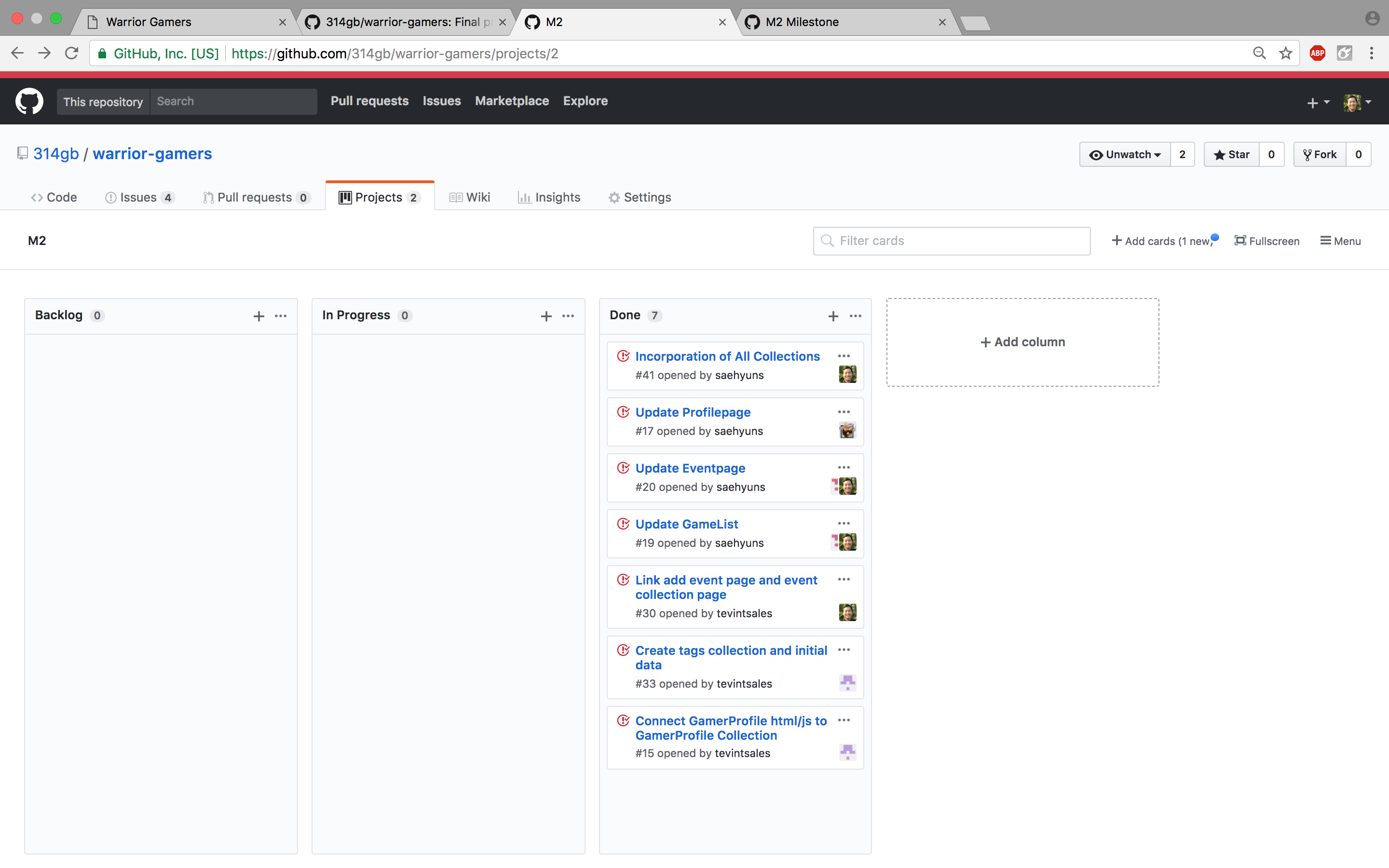

Milestone 2 consisted of seven issues, and progress was managed via the Warrior GitHub Project M2:

Each issue was implemented in its own branch, and merged into master when completed:

Support or Contact

If you have any questions or concerns, please do not hesitate to slack message us @yizan_chen, @kalani_sanidad, @tevin_sales, and @saehyun_song.
